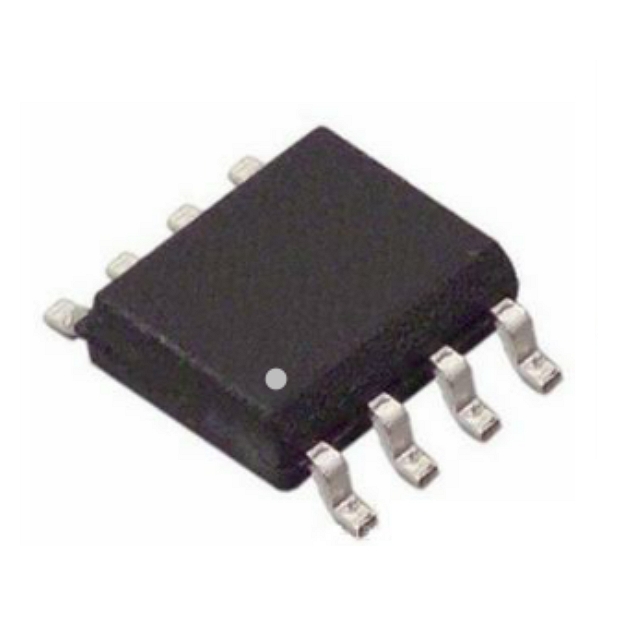

SCM3425ASA
SCM3425ASA - High-speed CAN / CAN FD Transceiver IC, 5 Mbps
MORNSUN
Power & Interface ICs
High-speed CAN transceiver IC between a CAN protocol controller and the physical bus, fully compliant with ISO 11898, supports CAN FD data rates up to 5 Mbps, SOP-8.
- Package
- SOP-8
- Operating temp.
- -40°C to +125°C
Price and lead time are quoted manually. Send the quantity and the destination and we will confirm what is possible for this part. Availability, shipping and order acceptance are subject to confirmation.
Samples may be available for selected models. Volume pricing is available. Price, MOQ, lead time and shipping eligibility are confirmed by quotation.
Specifications
| Function | High-speed CAN / CAN FD transceiver IC |
|---|---|
| Bus standard | Fully compliant with ISO 11898 |
| Signalling rate (max.) | 5 Mbps (CAN FD supported) |
| Logic I/O terminal voltage | -0.3 V to +7 V |
| Bus-side input voltage (CANH/CANL) | -42 V to +42 V |
| Operating ambient temperature | -40°C to +125°C |
| Junction temperature (max.) | -40°C to +150°C |
| Storage temperature | -65°C to +150°C |
| Package | SOP-8 |
Features
- High-speed CAN transceiver, fully compliant with ISO 11898
- Supports CAN FD, data rate up to 5 Mbps
- Bus-side input voltage -42 V to +42 V on CANH / CANL
- Logic I/O terminal voltage -0.3 V to +7 V
- Operating ambient temperature -40 °C to +125 °C
- Maximum junction temperature 150 °C
- SOP-8 package
Standards shown are the design references printed on the current datasheet. Ask us to confirm the certificate status that applies to your shipment.
Typical applications
- Industrial automation
- Building automation
- Smart meters
- Trucks, buses and mobile machinery
- Long-distance signal interaction and transmission
About this IC
The SCM3425ASA sits between a CAN protocol controller and the physical bus. It is fully compliant with ISO 11898 and supports CAN FD data rates up to 5 Mbps, so it suits both classic CANopen/J1939 networks and newer higher-rate designs.
The ±42 V bus-side tolerance and the -40 °C to +125 °C ambient rating are what make it usable in vehicles, mobile machinery and industrial equipment rather than only on a bench.
Brand, manufacturer and supply
- Brand
- MORNSUN
- Manufacturer
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Technical support
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Supplied by
- Raitop Information Technology Co., Ltd.
Related reading
Where this data comes from
| Item | Source (manufacturer official) | Version | Checked |
|---|---|---|---|
| datasheet, verified parameters | https://www.mornsun-power.com/public/uploads/pdf/SCM3425ASA.pdf | 2025.09.17-A/7 | 2026-09-16 |
| product image | https://www.mornsun-power.com/public/uploads/productsImg/SCM3425ASA.jpg | — | 2026-09-16 |
| specification table, features | https://www.mornsun-power.com/html/products-detail/SCM3425ASA.html | — | 2026-09-16 |
Raitop is an independent supplier. Product images, datasheets and specifications are MORNSUN material reproduced with permission.
