LM150-23B24R2S
156 W enclosed switching power supply, 24 VDC / 6.5A
MORNSUN
Enclosed Power Supplies
LM150-23BxxR2S series
MORNSUN LM150-23B24R2S: 80-305 VAC / 100-430 VDC input, 24 VDC / 6.5A regulated output, 4000VAC isolation, efficiency 91.5%. Specifications below are taken from the current official datasheet; price and lead time are quoted on request.
- Output power
- 156 W
- Input
- 80-305 VAC / 100-430 VDC
- Output
- 24 VDC
- Output current
- 6.5 A
- Isolation
- 4000VAC
- Efficiency
- 91.5%
Price and lead time are quoted manually. Send the quantity and the destination and we will confirm what is possible for this part. Availability, shipping and order acceptance are subject to confirmation.
Samples may be available for selected models. Volume pricing is available. Price, MOQ, lead time and shipping eligibility are confirmed by quotation.
Specifications
| Power(W) | 156 |
|---|---|
| Vin(VAC) | 80-305 |
| Vin(VDC) | 100-430 |
| Vout(VDC) | 24 |
| Iout | 6.5A |
| Efficiency(%) | 91.5 |
| Isolation | 4000VAC |
Features
- Universal 80-305 VAC / 100-430 VDC input voltage
- Accepts AC or DC on the same input terminals
- Operating ambient temperature -40 °C to +85 °C
- Low standby power consumption, high efficiency, small size
- High I/O isolation voltage up to 4000 VAC
- Output short-circuit, over-current, over-voltage and over-temperature protection
- Overvoltage category OVC III (designed to meet EN 62477)
- Operating altitude up to 5000 m
- Designed to meet IEC 62368 and EN/IEC 60335
Standards shown are the design references printed on the current datasheet. Ask us to confirm the certificate status that applies to your shipment.
Typical applications
- Machine and equipment builds
- Industrial control cabinets
- Automation and motion equipment
- LED and display systems
About this module

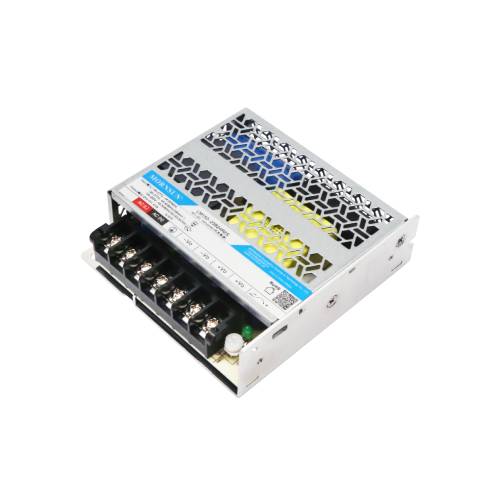

The LM150-23BxxR2S is a ~150 W enclosed metal-case supply with over-temperature protection in addition to the usual short-circuit, over-current and over-voltage limits. The universal 80-305 VAC input also accepts DC on the same terminals.
Brand, manufacturer and supply
- Brand
- MORNSUN
- Manufacturer
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Technical support
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Supplied by
- Raitop Information Technology Co., Ltd.
Related reading
Where this data comes from
| Item | Source (manufacturer official) | Version | Checked |
|---|---|---|---|
| datasheet, verified parameters | https://www.mornsun-power.com/public/uploads/pdf/LM150-23BxxR2S.pdf | 2025.09.26-A/1 | 2026-09-16 |
| product image | https://www.mornsun-power.com/public/uploads/productsImg/LM150-23BxxR2S.jpg | — | 2026-09-16 |
| specification table, features | https://www.mornsun-power.com/html/products-detail/LM150-23BxxR2S.html | — | 2026-09-16 |
Raitop is an independent supplier. Product images, datasheets and specifications are MORNSUN material reproduced with permission.
