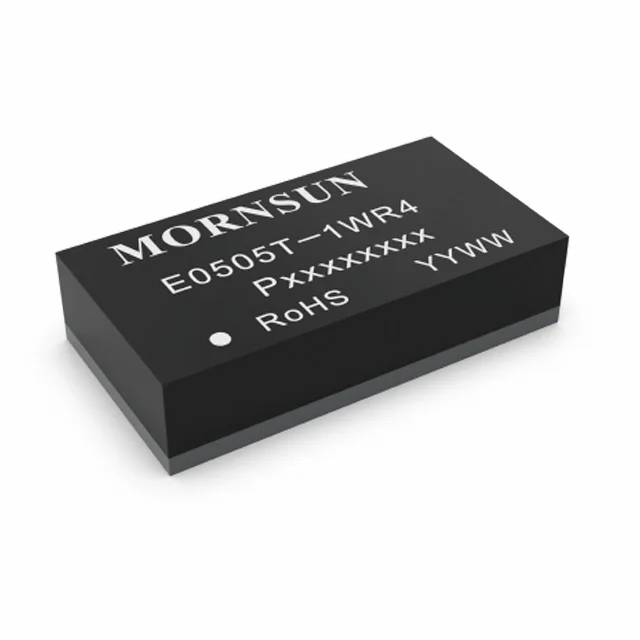

E0505T-1WR4
1 W isolated DC/DC converter, ±5 V output, DFN package
The E0505T-1WR4 is a 1 W isolated DC/DC converter with an input of 5 VDC and a ±5 VDC output. Isolation is 3000VDC, the package is DFN, and it measures 13.20*7.00*3.10 mm. Every figure above comes from the manufacturer's current official product data; Raitop quotes this part on request.
- Input
- 5 VDC
- Output
- ±5 VDC
- Isolation
- 3000VDC
- Package
- DFN
Price and lead time are quoted manually. Send the quantity and the destination and we will confirm what is possible for this part. Availability, shipping and order acceptance are subject to confirmation.
Samples may be available for selected models. Volume pricing is available. Price, MOQ, lead time and shipping eligibility are confirmed by quotation.
Specifications
| Power(W) | 1 |
|---|---|
| Vin(VDC) | 5 |
| Vout(VDC) | ±5 |
| No. of Outputs | 2 |
| Isolation | 3000VDC |
| Package | DFN |
| Dimension(mm) | 13.20*7.00*3.10 |
Brand, manufacturer and supply
- Brand
- MORNSUN
- Manufacturer
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Technical support
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Supplied by
- Raitop Information Technology Co., Ltd.
Where this data comes from
| Item | Source (manufacturer official) | Version | Checked |
|---|---|---|---|
| specs_json | https://www.mornsun-power.com/index/sitesearch/partlink/keyword/E0505T-1WR4.html | — | 2026-09-19 |
| image_path | https://www.mornsun-power.com/public/uploads/productsImg/120/E05xxT-1WR4.jpg | — | 2026-09-19 |
| datasheet_source_url | https://www.mornsun-power.com/html/pdf/E0505T-1WR4.html | — | 2026-09-19 |
Raitop is an independent supplier. Product images, datasheets and specifications are MORNSUN material reproduced with permission.
