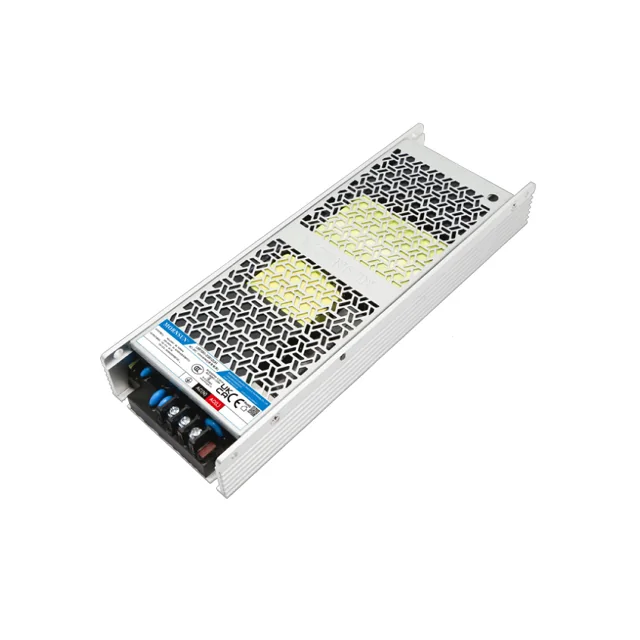

LMF500-23B24UH
501.6 W AC/DC converter module, 24 V output
The LMF500-23B24UH is a 501.6 W AC/DC converter module with an input of 85-305 VAC or 120-430 VDC and a 24 VDC output rated 20.9A. Isolation is 4000VAC. Every figure above comes from the manufacturer's current official product data; Raitop quotes this part on request.
- Input
- 85-305 VAC
- Output
- 24 VDC
- Output current
- 20.9 A
- Isolation
- 4000VAC
Price and lead time are quoted manually. Send the quantity and the destination and we will confirm what is possible for this part. Availability, shipping and order acceptance are subject to confirmation.
Samples may be available for selected models. Volume pricing is available. Price, MOQ, lead time and shipping eligibility are confirmed by quotation.
Specifications
| Power(W) | 501.6 |
|---|---|
| Vin(VAC) | 85-305 |
| Vin(VDC) | 120-430 |
| Vout(VDC) | 24 |
| Iout | 20.9A |
| Efficiency(%) | 94.5 |
| Isolation | 4000VAC |
Brand, manufacturer and supply
- Brand
- MORNSUN
- Manufacturer
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Technical support
- MORNSUN Guangzhou Science & Technology Co., Ltd.
- Supplied by
- Raitop Information Technology Co., Ltd.
Where this data comes from
| Item | Source (manufacturer official) | Version | Checked |
|---|---|---|---|
| specs_json | https://www.mornsun-power.com/index/sitesearch/partlink/keyword/LMF500-23B24UH.html | — | 2026-09-17 |
| image_path | https://www.mornsun-power.com/public/uploads/productsImg/120/LMF500-23BxxUH.jpg | — | 2026-09-17 |
| datasheet_source_url | https://www.mornsun-power.com/html/pdf/LMF500-23B24UH.html | — | 2026-09-17 |
Raitop is an independent supplier. Product images, datasheets and specifications are MORNSUN material reproduced with permission.
